Gas Heaters
Our Electric Gas Heaters for CO2 & N2O systems are designed to provide uniform heat transfer and prevent change of state. These heaters are tailored to maintain specific conditions, ensuring optimal performance and safety. Our gas heaters are reliable, durable, and engineered to meet rigorous laboratory standards.

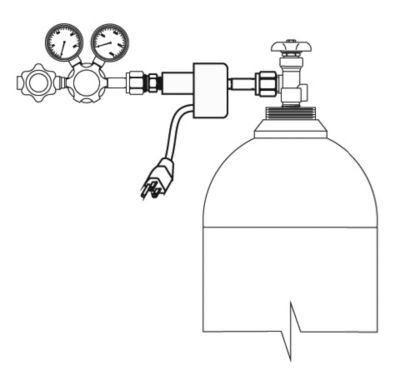

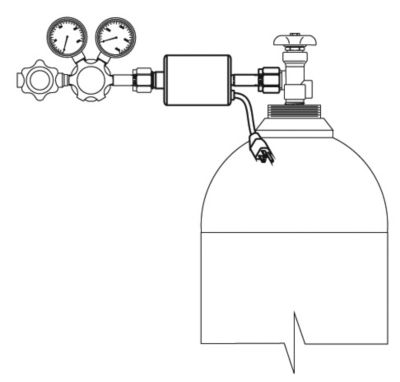

Preventing regulator freeze-up with Electric Gas Heater
Regulator Freeze-Up poses significant risks to component reliability, but our electric gas heaters offer a reliable solution.
This issue arises when a pressure regulator is obstructed by dry ice, snow, or crystals, limiting gas flow through the regulator or other pressure control valves. The low temperature conditions can also cause substantial damage to the internal components of the pressure reducing regulators, a common concern when utilizing gases like carbon dioxide, nitrous oxide and other gases.
To counteract this challenge, we have developed Electric Gas Heaters specifically for Carbon Dioxide and Nitrous Oxide Cylinders, ensuring smooth and uninterrupted operation.
End Connections size |
Performance |
Max. Working Pressure |
Power Requirement |
|||
---|---|---|---|---|---|---|
Inlet |
Outlet |
Flow |
PSIG |
Volts |
Watts |
Cycles |
CGA 320 - Nut & Nipple |
CGA 320 Male Adaptor |
90 SCFH |
1000 PSIG |
120 Volts |
100 Watts |
50/60 Hertz |
End Connections size |
Performance |
Max. Working Pressure |
Power Requirement |
|||
---|---|---|---|---|---|---|
Inlet |
Outlet |
Flow |
PSIG |
Volts |
Watts |
Cycles |
CGA 320 - Nut & Nipple |
CGA 320 Male Adaptor |
90 SCFH |
1500 PSIG |
120 Volts |
100 Watts |
50/60 Hertz |
End Connections size |
Performance |
Max. Working Pressure |
Power Requirement |
|||
---|---|---|---|---|---|---|
Inlet |
Outlet |
Flow |
PSIG |
Volts |
Watts |
Cycles |
CGA 320 - Nut & Nipple |
CGA 320 |
1000 SCFH |
2500 PSIG/4600 PSIG |
120/240 Volts |
100 Watts |
50/60 Hertz |
