Individual Pressure Controls
Our Individual Pressure Controls are engineered to precisely regulate the pressure in gas distribution pipelines, tailoring it to the specific needs required at the point of use. Designed with precision and reliability in mind, they are an essential component for any laboratory environment requiring exact control over their gas supply to maintain the integrity of experiments and research outcomes.

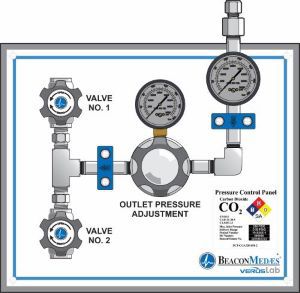

PCP Series
Pressure Control Panels - Ideal for incubator applications
ease of cleaning and aesthetically pleasing modern look
provides a stable and convenient mounting surface for pressure reducing regulator and multiple delivery valves
perfect to use with dual or quad stacked incubators, allowing for on/off control for gas supply to each incubator
| PCP Series | |
|---|---|
| Material of construction | Chrome-plated forged brass (body) |
| Maximum inlet pressure |
Up to 1000 psig |
| Mounting Panel |
Anodized aluminum |
| Delivery Pressure range | Up to 500 psig (1-125 psig is standard) |
| Flow coefficient | 0.17 |

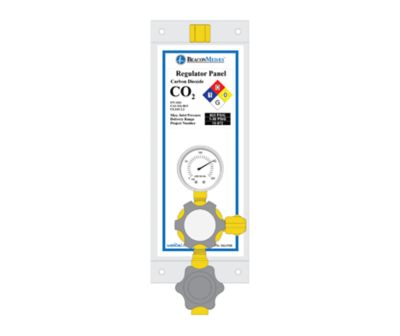

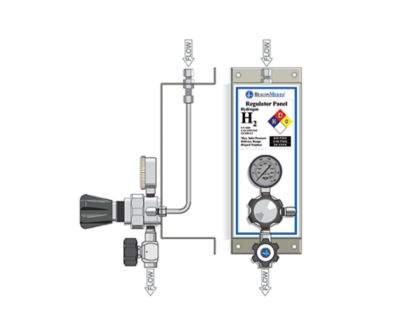

RP600 Series
Point-of-Use Compact Regulator Panels
provides important safety information and equipment performance settings
choose from a wide variety of outlet valves, locations and connections
connects to piping from either the bench or from the ceiling
| RP600 Series | |
|---|---|
| Material of construction | Brass w/ copper tubing or all stainless steel |
| Maximum inlet pressure |
Brass: 600 psig - stainless steel: up to 6000 psig |
| Mounting Panel |
Epoxy coated steel |
| Installation | Surface mount |
| Delivery pressure range | Up to 500 psig (1-125 psig is standard) |
| Regulator flow performance | Cv= 0.08 is standard |
| Internal tubing size | 1/4" |
HPDS Series
High Purity Drop Stations
provides a high tech look and easy to clean surface
eliminates “off gassing” associated with neoprene diaphragms into the gas stream
atmospheric gas diffusion into the gas stream often associated with medical ball valves
| HPDS Series | |
|---|---|
| Material of construction | Brass regulator - stainless steel valve |
| Maximum inlet pressure |
2000 psig (without the copper extension) |
| Mounting Panel |
Chrome plated brass and/or stainless steel |
| Installation | Surface mount (requires struts or channels) |
| Delivery pressure range | Up to 250 psig (1-125 psig is standard) |
| Regulator flow performance | Cv= 0.17 is standard |
| Internal tubing size | 1/2" compression is standard |
| GPGS200 Series | |
|---|---|
| Material of construction | Chrome-Plated Brass |
| Maximum inlet pressure |
200 psig [13.8 Barg] |
| Mounting Panel |
Painted Steel Panel |
| Installation | Surface mount (requires struts or channels) |
| Delivery pressure range | Up to 125 psig (1-125 psig is standard) |
| HPGS3000 Series | |
|---|---|
| Material of construction | Nickel-Plated Brass |
| Maximum inlet pressure | 3000 psig [207 Barg] |
| Mounting Panel |
Painted Steel Panel |
| Installation | Surface mount (requires struts or channels) |
| Delivery pressure range | Up to 125 psig (1-125 psig is standard) |
