Isolation and Protection
Our Isolation and Protection solutions are ideal for pipeline shutoff and monitoring. From source valves to zone valves, we offer high purity pipeline solutions that ensure maximum flexibility of your high purity gas system. Pipeline sensors and alarm switches interface with BeaconMedaes remote alarm annunciators or the Building Management System.

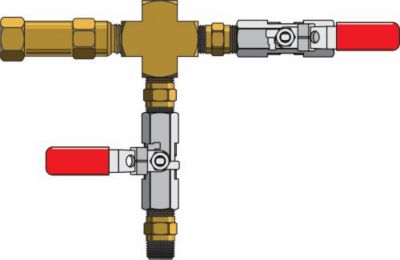

| TIK Series | |
|---|---|
| Relief pressure | From 15 psi to 500 psi |
| Material of construction | Brass or stainless steel |
| Available sizes | 1/2" NPS |
| Type of Valves | Ball valves or diaphragm valves |

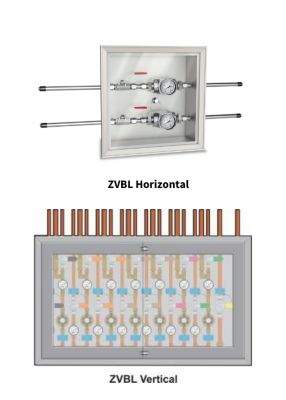

ZVBL Series
a front picture frame, made of anodized aluminum includes a removable impact-resistant sheet window crafted of clear polycarbonate with pullout ring(s).
depending upon flow, pressure and purity of gases used.
can be used in conjunction with valves and conduits to make any type of valve assemblies.
we will not install valve assemblies into a box if they are not all compatible together.
are composed of conduits (tubes or pipes), one isolation valve, a pressure gauge and a mounting block.
| ZVBL Series | |
|---|---|
| Capacity | Up to 7 gang valve boxes |
| Size of valves | Up to 1" tube or 1" pipe |
| Type of valves | Ball valves or diaphragm valves |
MGVB Series
Designed for easy cleaning and maintenance, the stainless steel offer greater corrosion resistance and is extreme sturdiness.
features a sturdy 1/4” [6 mm] polycarbonate window that allows you to see the valve without opening the door, ensuring safety and convenience.
slotted holes are pre-punched on both top and bottom of the back box.
prevents tampering and ensures that only authorized personnel can access the master gas valve box.
includes two pipe holders, the ball valve, two pipe nipples and the enclosure pre-punched. Ball valves are UL and CSA approved for natural and LP gas service.
| MGVB Series | |
|---|---|
| Door | Type 304 16-gauge stainless steel |
| Hinge | Stainless steel |
| Rough in (back box) | Spot welded 16-gauge type 304 stainless steel |
| Optional window | Acrylic - 1/4" thick |

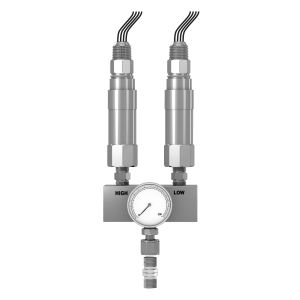

| HLPS Series | |
|---|---|
| Material | Up to 7 gang valve boxes |
| Pressure | Up to 7500 psi |
| Installation and classification | Indoor, outdoor, explosion proof |

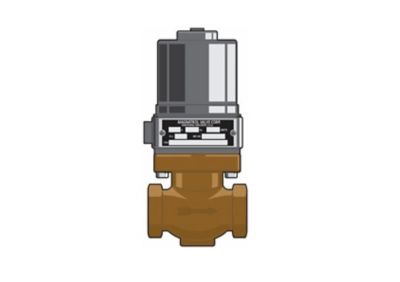

| SVNC Series | |
|---|---|
| Application | Gas or cryogenic liquid applications requiring extremely low-temperature shutoff |
| Materials | Bronze (stainless steel available as a special order) |
| Size | Inlet and outlet ports are 1/2' F.NPT |
| Pressure | 110 or 200 psig |

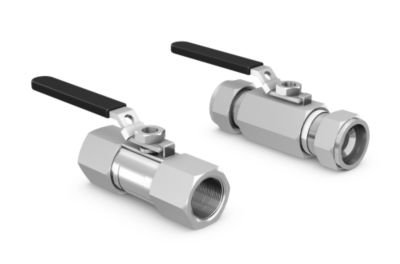

| BV2000 Series | |
|---|---|
| Inlet Size | 1/4", 3/8", 1/2", 3/4", 1" |
| Materials | Stainless steel |
| Ports | NPT, Compression |
| UDV250 Series | |
|---|---|
| Inlet Size | 1/4", 3/8", 1/2", 3/4" |
| Materials | Stainless steel |
| Ports | Compression |
| CV Series | |
|---|---|
| Inlet Size | 1/4", 3/8", 1/2", 3/4", 1" |
| Materials | Brass or stainless steel |
| Ports | NPT, Compression |

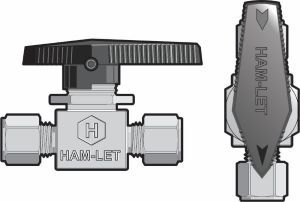

| HBV3000 Series | |
|---|---|
| Inlet Size | 1/4", 3/8", 1/2", 3/4" |
| Materials | Brass or Stainless steel |
| Ports | NPT, Compression |
| EFV Series | |
|---|---|
| Inlet Size | 1/4" |
| Materials | Stainless steel |
| Ports | NPT |

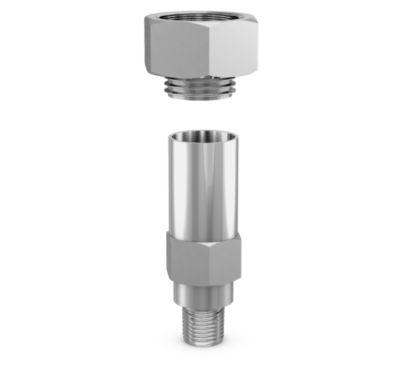

| PRV Series | |
|---|---|
| Inlet Size | 1/4", 3/8", 1/2", 3/4" |
| Materials | Brass or Stainless steel |
| Ports | NPT only |
