Specialty Gas Stations
Specialty Gas Stations are an integral component of a laboratory, designed to handle the complexities and rigorous demands of specialized gas delivery with unparalleled precision and safety. These stations are engineered to provide a reliable and efficient supply of various specialty gases, supporting a wide range of laboratory applications. Designed for low flow, high purity applications, our Specialty Gas Stations may be placed in either a gas room or in the laboratory work area.
| PSB3000 Series | |
|---|---|
| No. cylinders recommended |
Maximum 1 |
| Switchover method |
No switchover possible |
| Alarm system |
Remote (optional) |
| Flow |
Depends on regulator used |
| Material of construction |
Brass or stainless steel |
| Delivery pressure range |
Regulator sold separately |
| Fluid state at outlet of manifold |
Gas |

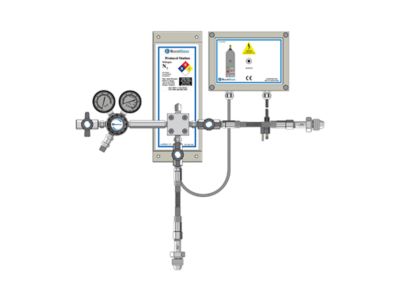

| MCS3000 Series | |
|---|---|
| No. cylinders recommended |
Maximum 2 |
| Switchover method |
Opening/closing isolation valves |
| Alarm system |
Remote (optional) |
| Flow |
Cv = 0.06 (low flow) |
| Material of construction |
Brass or stainless steel |
| Delivery pressure range |
Up to 500 psig |
| Fluid state at outlet of manifold |
Gas |
| PDC350, PDC1500 and PDC3000 Series | |
|---|---|
| No. cylinders recommended |
Maximum 1 per side |
| Switchover method |
Pressure differential with priority bank selector handle |
| Alarm system |
Remote (optional) |
| Flow |
Cv = 0.06 or 0.10 (low flow) |
| Material of construction |
Brass or stainless steel |
| Delivery pressure range |
35-125 psig |
| Fluid state at outlet of manifold |
Gas |
| BUS3500 Series | |
|---|---|
| No. cylinders recommended |
Minimum 1 Liq. (main side) Minimum 1 H.P. (B/U Side) |
| Switchover method |
Priority to liquid side when pressure is above 135 psi |
| Alarm system |
Remote (optional) |
| Flow |
Cv = 0.10 (from back-up side) |
| Material of construction |
Brass only |
| Delivery pressure range |
35-100 psig (with line regulator) |
| Fluid state at outlet of manifold |
Gas |

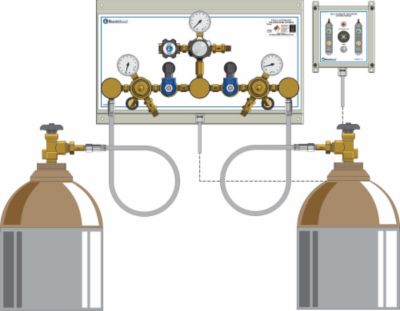

| FCS3000 Series | |
|---|---|
| No. cylinders recommended |
Minimum 2 per side |
| Switchover method |
Switchover is electronically driven (no operator intervention) |
| Alarm system |
Remote (standard) |
| Flow |
Cv = 0.10 (low flow) |
| Material of construction |
Brass or stainless steel |
| Delivery pressure range |
35-125 psig |
| Fluid state at outlet of manifold |
Gas |
| SIM3000 Series | |
|---|---|
| No. cylinders recommended |
Minimum 3 |
| Switchover method |
None |
| Alarm system |
Remote (optional) |
| Flow |
Cv = 0.45 (medium flow) |
| Material of construction |
Brass or stainless steel |
| Delivery pressure range |
Up to 500 psig |
| Fluid state at outlet of manifold |
Gas |

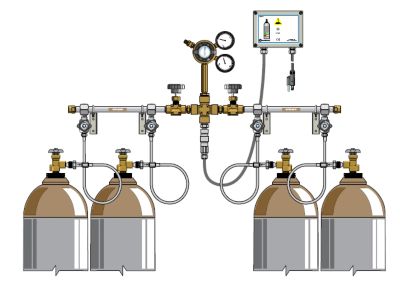

| SCM3000 Series | |
|---|---|
| No. cylinders recommended |
Minimum 2 per side |
| Switchover method |
Diverter valve rotation selects bank while isolating the other |
| Alarm system |
Remote (optional) |
| Flow |
Cv = 0.45 (medium flow) |
| Material of construction |
Brass (stainless steel optional) |
| Delivery pressure range |
Up to 500 psig |
| Fluid state at outlet of manifold |
Gas |
