Cabinet Style Manifolds
Our cabinet style manifolds offer secure and organized gas management in laboratories. Enclosed in protective cabinets, they centralize control of multiple gas cylinders or containers, enhancing safety and space efficiency. Ideal for any size laboratory, their robust design and safety features ensure reliable, precise gas distribution in demanding environments. An array of remote monitoring options are available.

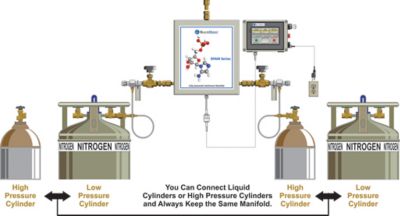

| DFAM Series | |
|---|---|
| No. cylinders recommended |
Minimum 2 per side |
| Switchover method |
Switchover is PLC driven (no operation intervention) |
| Alarm system |
Built-in |
| Material of construction |
Brass or stainless steel |
| Delivery pressure range |
30-145 psig |
| Fluid state at outlet of manifold |
Gas |

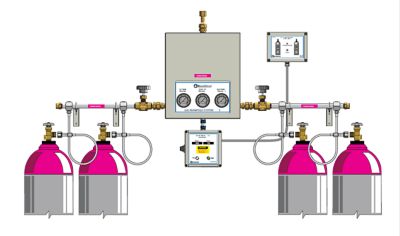

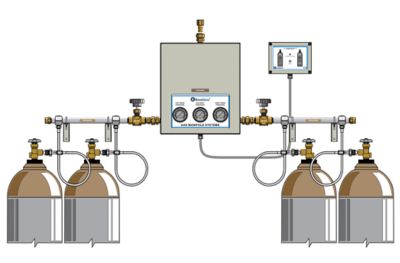

| AFAM Series | |
|---|---|
| No. cylinders recommended |
Minimum 2 per side |
| Switchover method |
Switchover is Electronically driven (no operation intervention) |
| Alarm system |
Built-in |
| Material of construction |
Brass or stainless steel |
| Delivery pressure range |
30-125 psig |
| Fluid state at outlet of manifold |
Gas |
| PDSM Series | |
|---|---|
| No. cylinders recommended |
See image |
| Switchover method |
Pressure differential with priority bank selector handle [KNOB] |
| Alarm system |
Remote (optional) |
| Material of construction |
Brass or stainless steel |
| Delivery pressure range |
30-125 psig |
| Fluid state at outlet of manifold |
Gas |
| PBUM3500 Series | |
|---|---|
| No. cylinders recommended |
Min. 1 Liq. (main side); Min. 2 H.P. (B/U side) |
| Switchover method |
Priority to liquid side when pressure is above 115 psig |
| Alarm system |
Remote (optional) |
| Material of construction |
Brass only |
| Delivery pressure range |
30-100 psig |
| Fluid state at outlet of manifold |
Gas |
