Low operation & maintenance cost
Moving from changing regulators to servicing of regulators and eliminating heater kit requirement.
High utilization & uptime
Optimum cylinder utilization and zero downtime by individually service gas regulators without interruption of gas flow.
Smart and intelligent
Easy to use and highly responsive with the 7” LCD color display, capacitive touchscreen and intuitive user interface.
Key Features
A Smartbox is included as a standard to allow real-time remote monitoring and reporting of the functioning of the manifold. It offers push notifications and access to device details wherever you are.

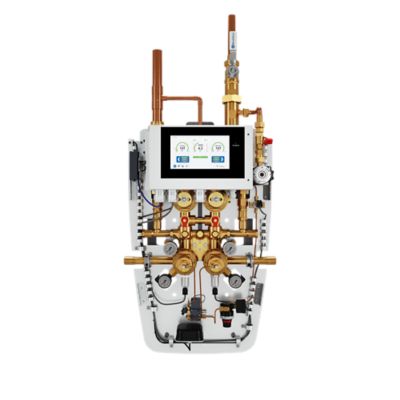

MAT-S is powered by a smart operating system. The controller features a 7” touch screen color display with a simple, clean, and easy-to-use interface. MAT-S offers flow and pressure trend visualization, so you can track your gas supply and plan cylinder refills accordingly. It allows you to analyze and understand your gas consumption patterns and better management of gas cylinders. The controller has 25+ additional functionalities to improve the productivity of the user.
A medical gas manifold terminal unit is built in for quick, easy, and cost-efficient gas purity and other testing. It removes the need for the on-site installation of terminal units, copper pipes, brazing, and testing, thereby saving installation costs.
MAT-S has individual service valves after each bank (1st stage) and line (2nd stage) regulators. Each regulator can be isolated for maintenance without disrupting the gas supply to patients.
An integrated non-return valve along with a lockable valve ensures compliance with HTM standards and maximum safety.
Tailpipes and Pigtails are crucial components used to connect gas cylinders to the manifold header racks, ensuring a reliable and safe distribution of gases like oxygen, nitrogen, and nitrous oxide. Pigtails are flexible hoses or rigid tubes that connect the gas cylinder's valve to the manifold system. They are made for durability and safety, ease of use and adhering to compliance and standards according to NFPA 99, HTM02-01, HTM2022 and ISO 7396-1.
